This series of industrial robots is a four-axis horizontal articulated robot. It features flexible motion, a compact structure, excellent dynamic performance, and high motion repeatability. The joints adopt a modular design and assembly, making installation and maintenance convenient, and can effectively replace light manual labor with payloads under 4 kg.

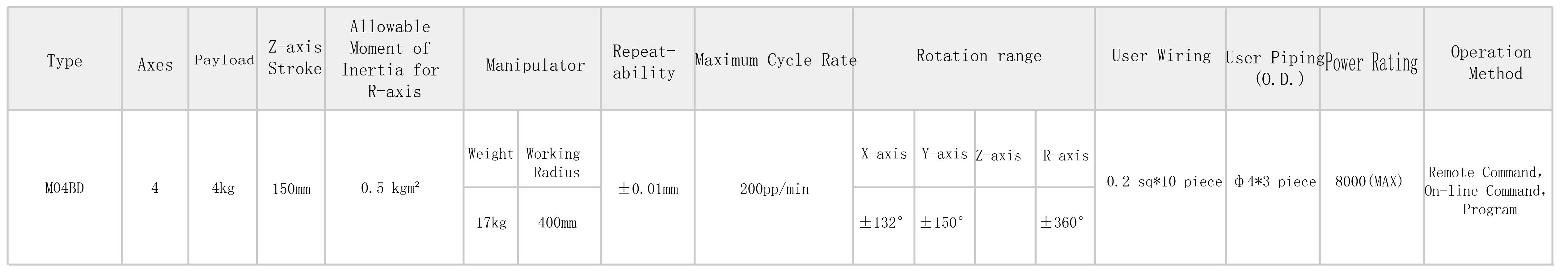

The robot has a reach of 400 mm. The upper arm can rotate up to ±132°, and the forearm can rotate up to ±150°. Its working envelope covers a wide fan-shaped area with a maximum diameter of 800 mm, meeting the requirements of long-distance handling, sorting, and assembly operations across multiple workstations.
