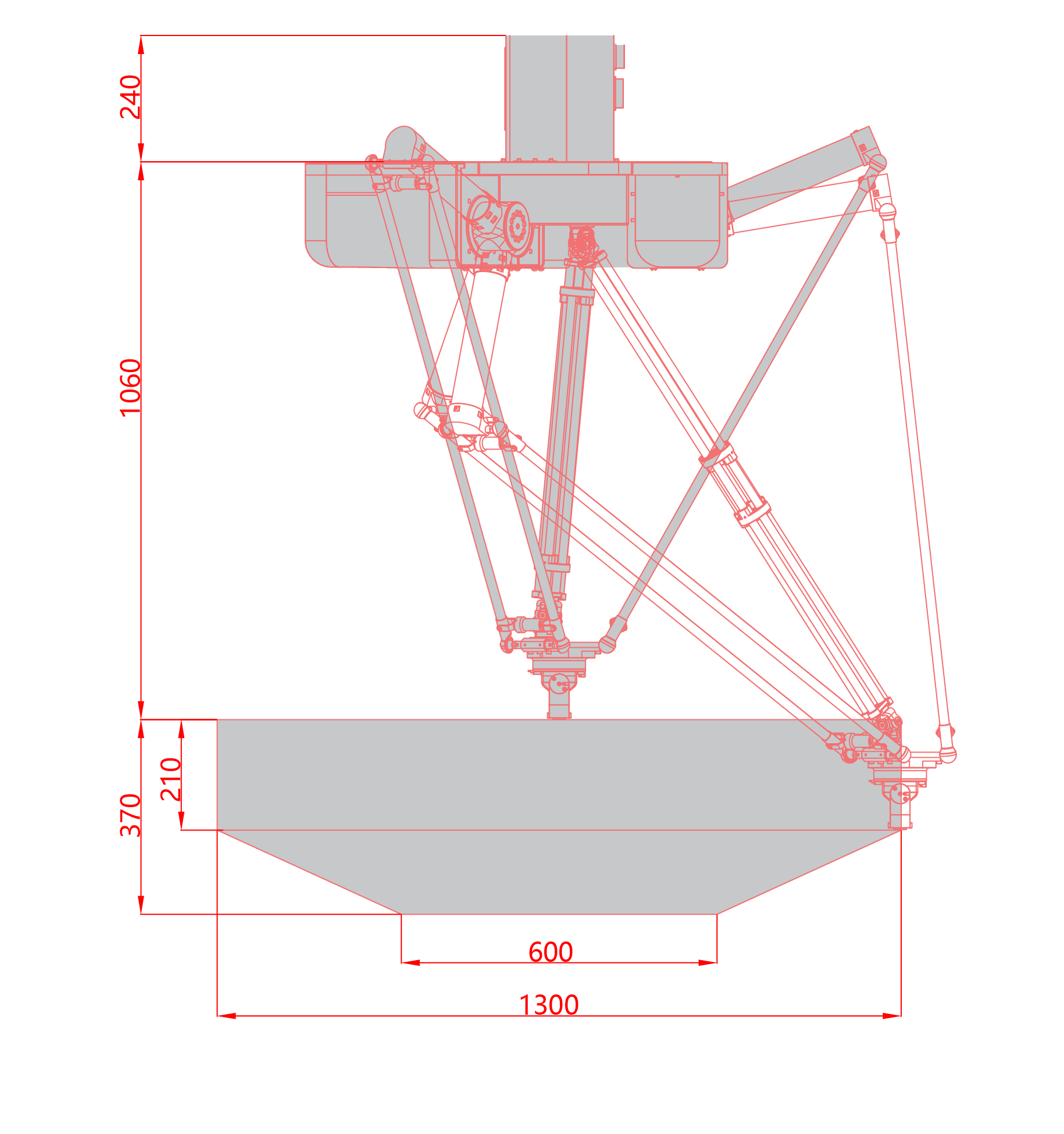

The 5-axis robot adds two parallel rotating axes based on the traditional three-axis parallel robot. One axis controls the horizontal rotation and the other axis controls the vertical rotation. The two intermediate axes are controlled by servo coupling, which has higher precision, faster speed and longer service life.

1. Adds a pitching degree of freedom, enabling posture transformation from horizontal grasping to vertical placement. 2. Standard cycle time of 0.33 seconds meets the demands for maximum speed and minimum footprint. 3. Features a specially designed rotational axis hinge that easily handles high-intensity, high-frequency repetitive motion requirements. 4. Highly suitable for applications requiring posture adjustment, such as bottle filling in the food & beverage and daily chemical industries, and oriented material insertion.
